BS100 Intelligent Battery Station

Overview

The intelligent battery station is a one-stop solution for battery charging, storage, and transport. Supports Ready-to-Fly Mode with 90% recharge, Standard Mode with 100% recharge, as well as Fast Charging Mode and Silent Mode to extend battery lifespan. The new 360°-movement wheels facilitate more convenient transportation and transitions. The battery station provides three TB100 battery ports, two WB37 battery ports, and one USB-C charging port. It can charge one TB100 battery and one WB37 battery simultaneously.

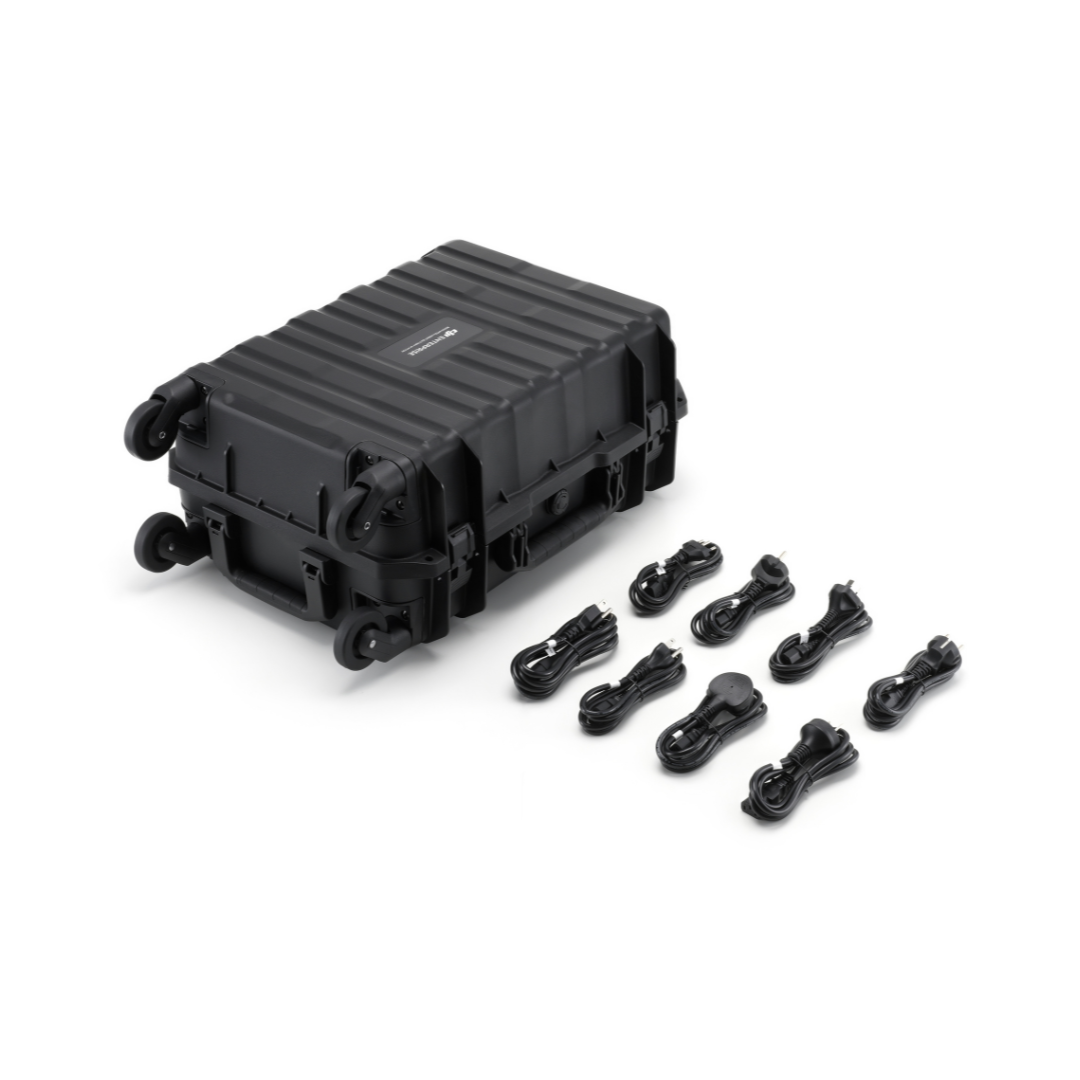

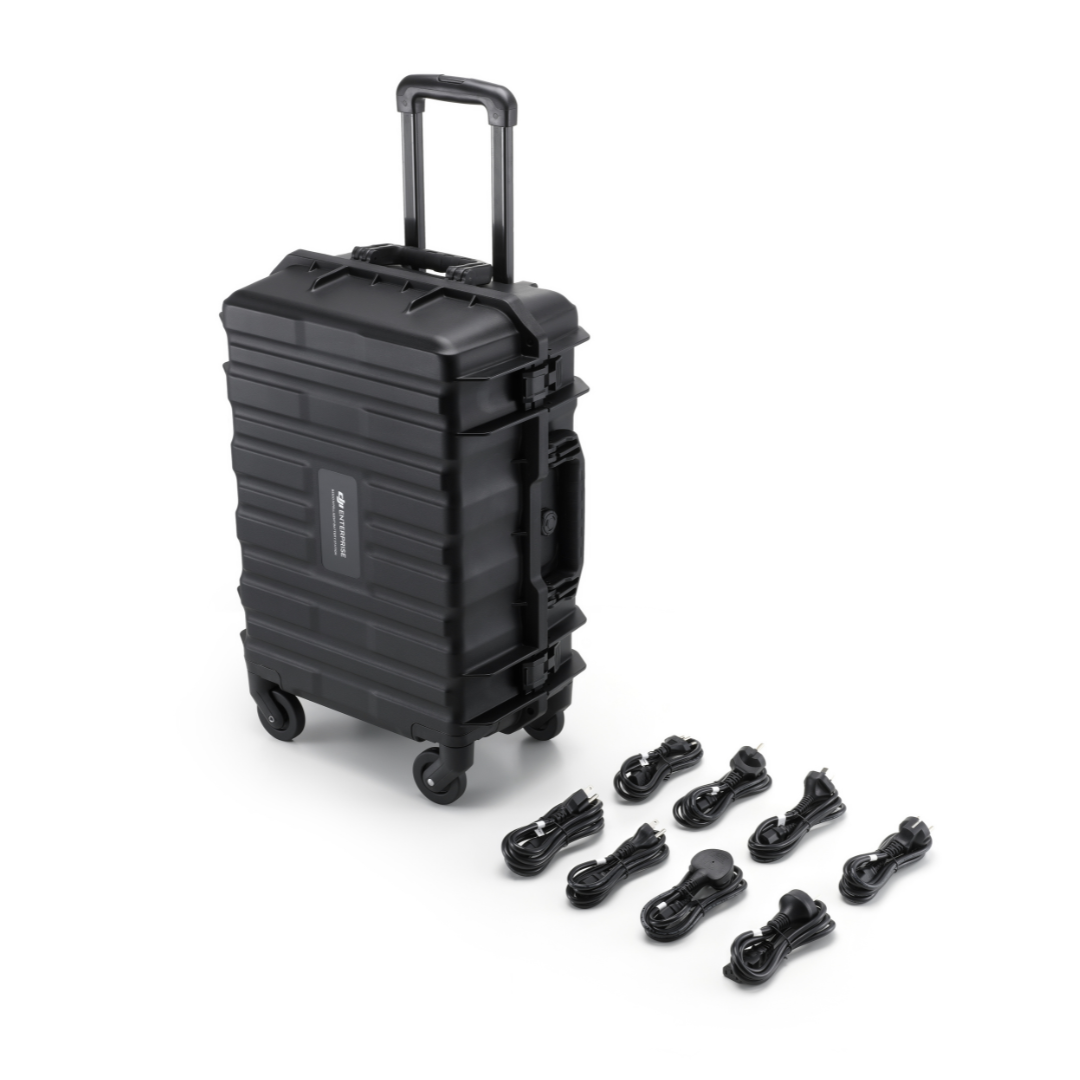

In The Box

• BS100 Intelligent Battery Station × 1
• AC Cable (Universal) × 6
• AC Cable (Korea) × 1
• AC Cable (China) × 1

Specifications

• Dimensions: 605 × 410 × 250 mm (L×W×H)
• Empty Weight: Approximately 11.8 kg
• Output Power:
  • TB100 Battery Port:
    • 100 V to 110 V: Approximately 1185 W
    • 110 V to 180 V: Approximately 1474 W
    • 180 V to 240 V: Approximately 2184 W
  • WB37 Battery Port:
    • 100 V to 240 V: Approximately 52 W
  • USB-C:
    • 5.0 V 3.0 A/9.0 V 3.0 A/12.0 V 3.0 A/15.0 V 3.0 A/20.0 V 3.25 A, up to 65 W output power
• Operating Temperature:-20° to 40° C (-4° to 122° F)

Compatibility

• DJI Matrice 400

Tips

1. Do not close the battery station while recharging.

2. DO NOT attempt to touch the metal terminals on the battery ports.
